Build Gallery

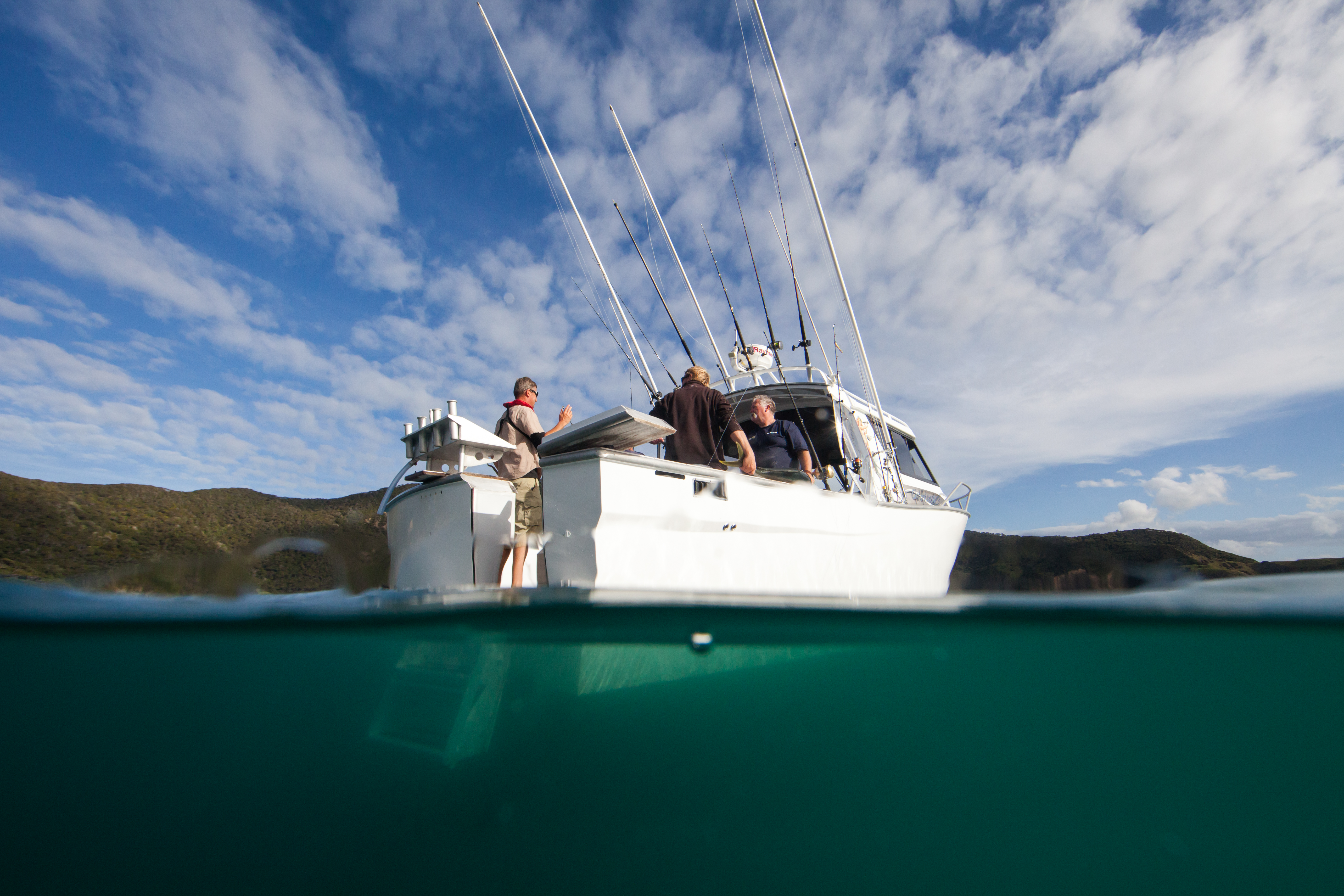

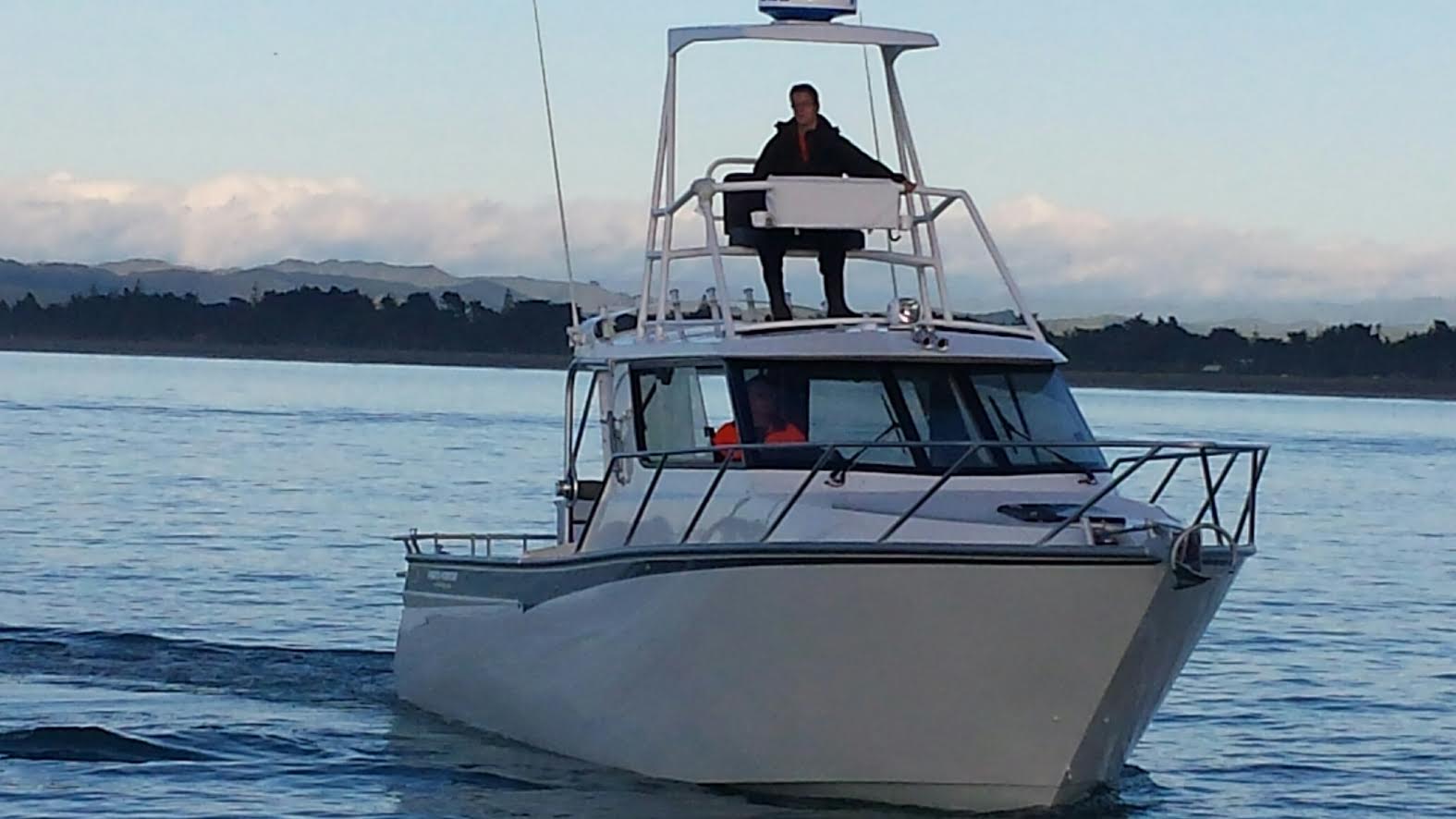

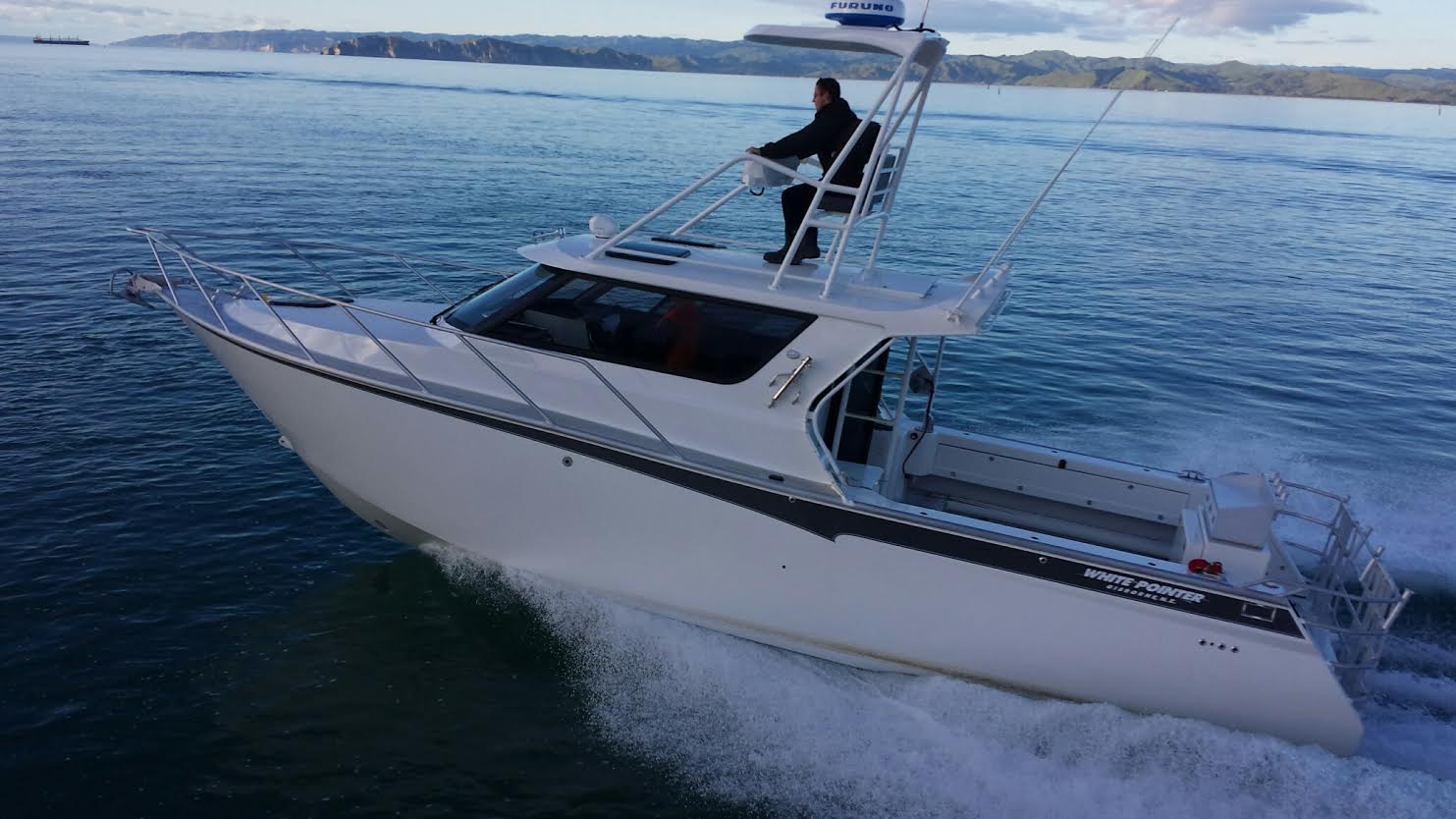

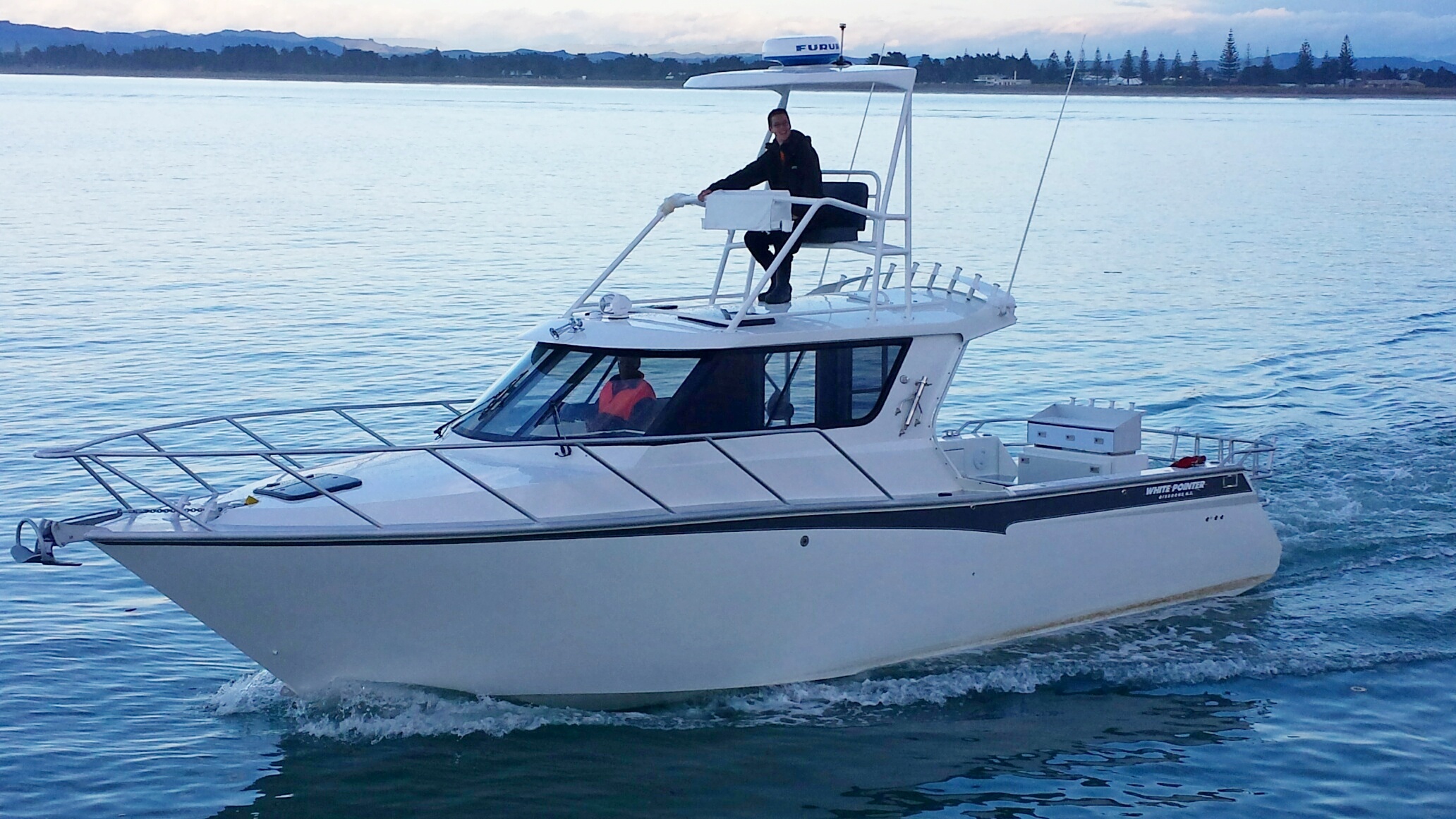

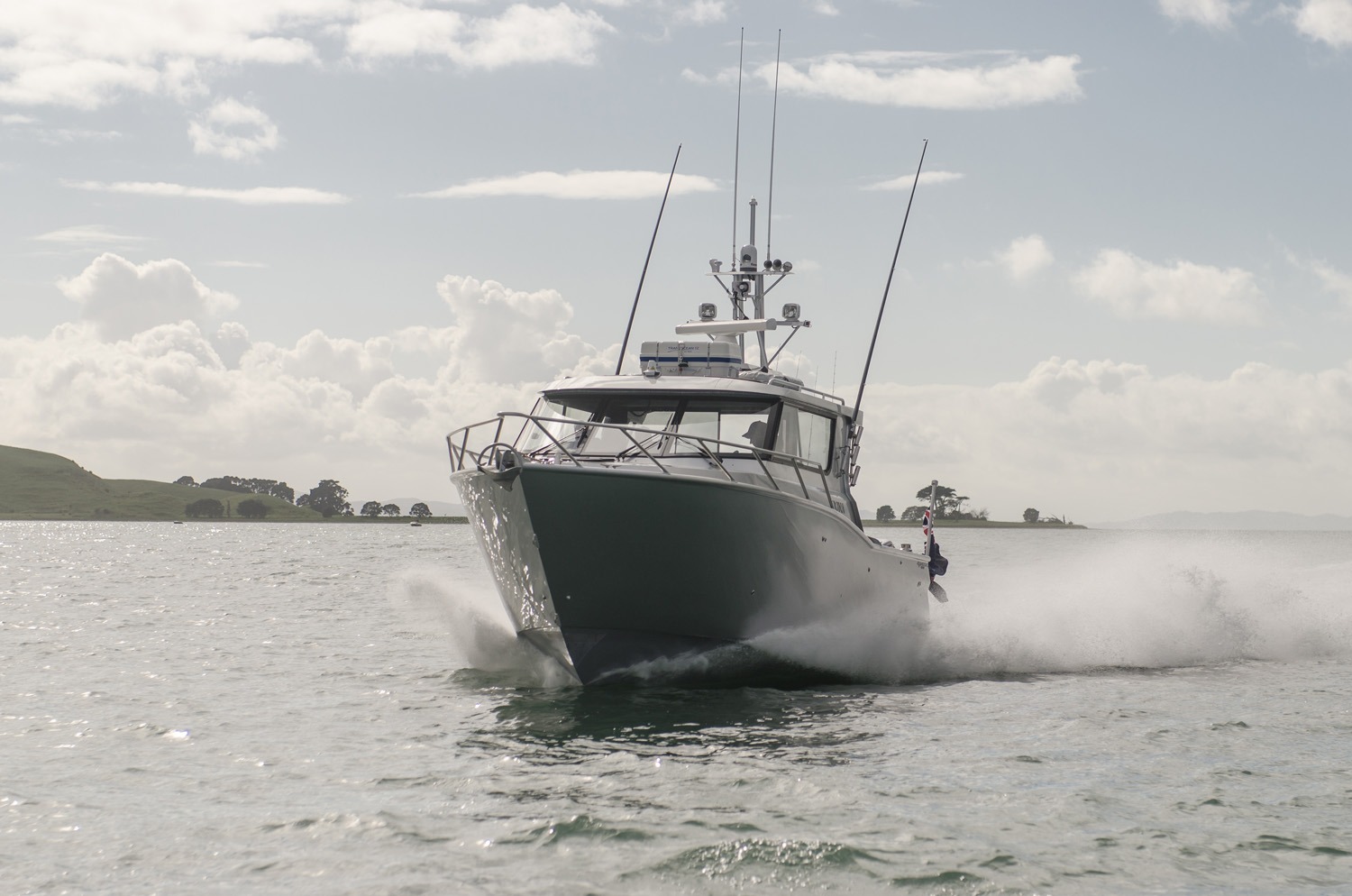

Boats we have built.

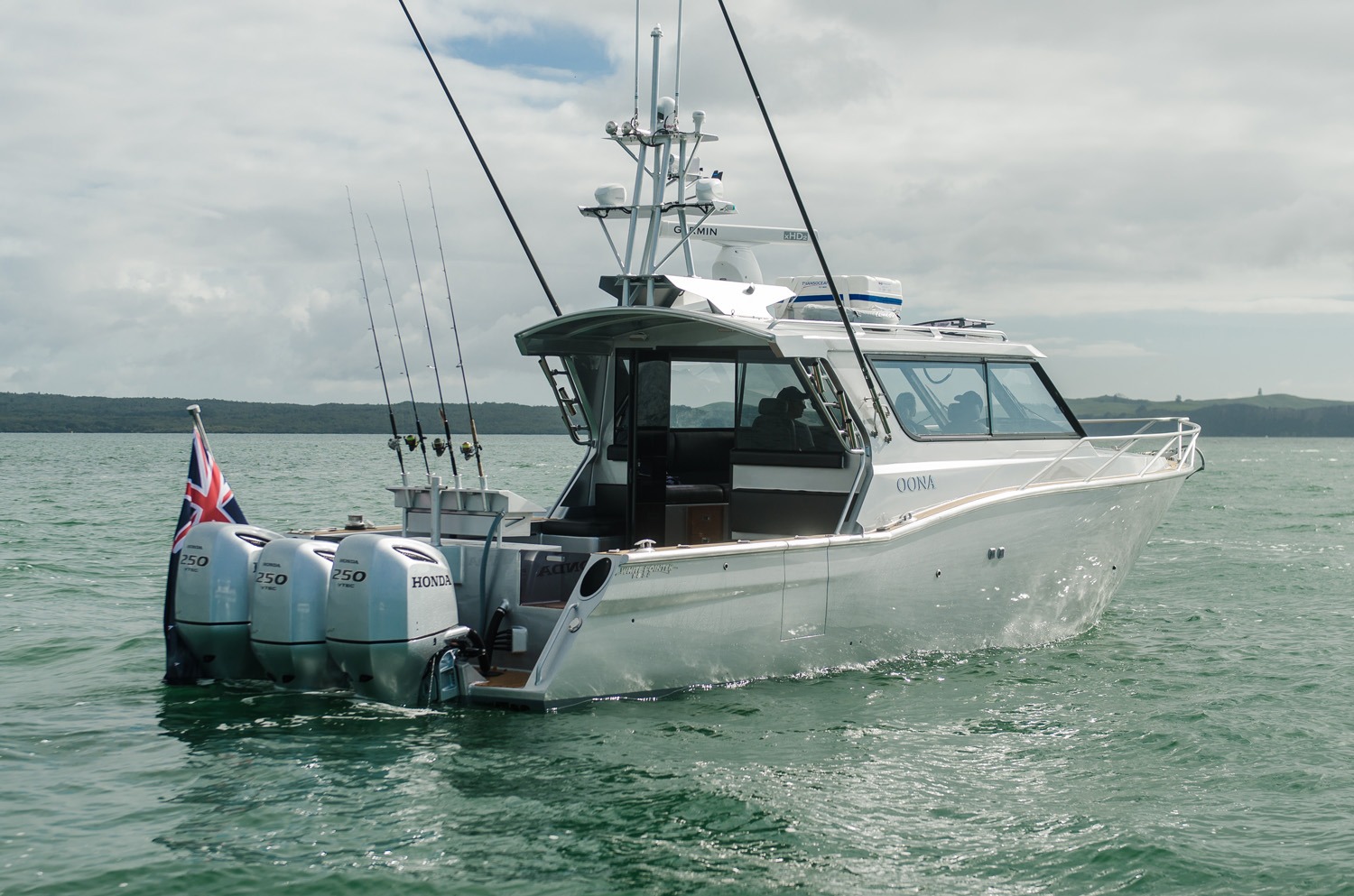

At 3.1m beam, the WP35 is the pinnacle of the Custom Cruiser series. Built without compromise for extended offshore passages.
5 photos — click to view full size
Drivetrain
Choose your drivetrain.
The WP35 is engineered to accept multiple propulsion configurations, each factory-fitted and fully integrated into the hull design.

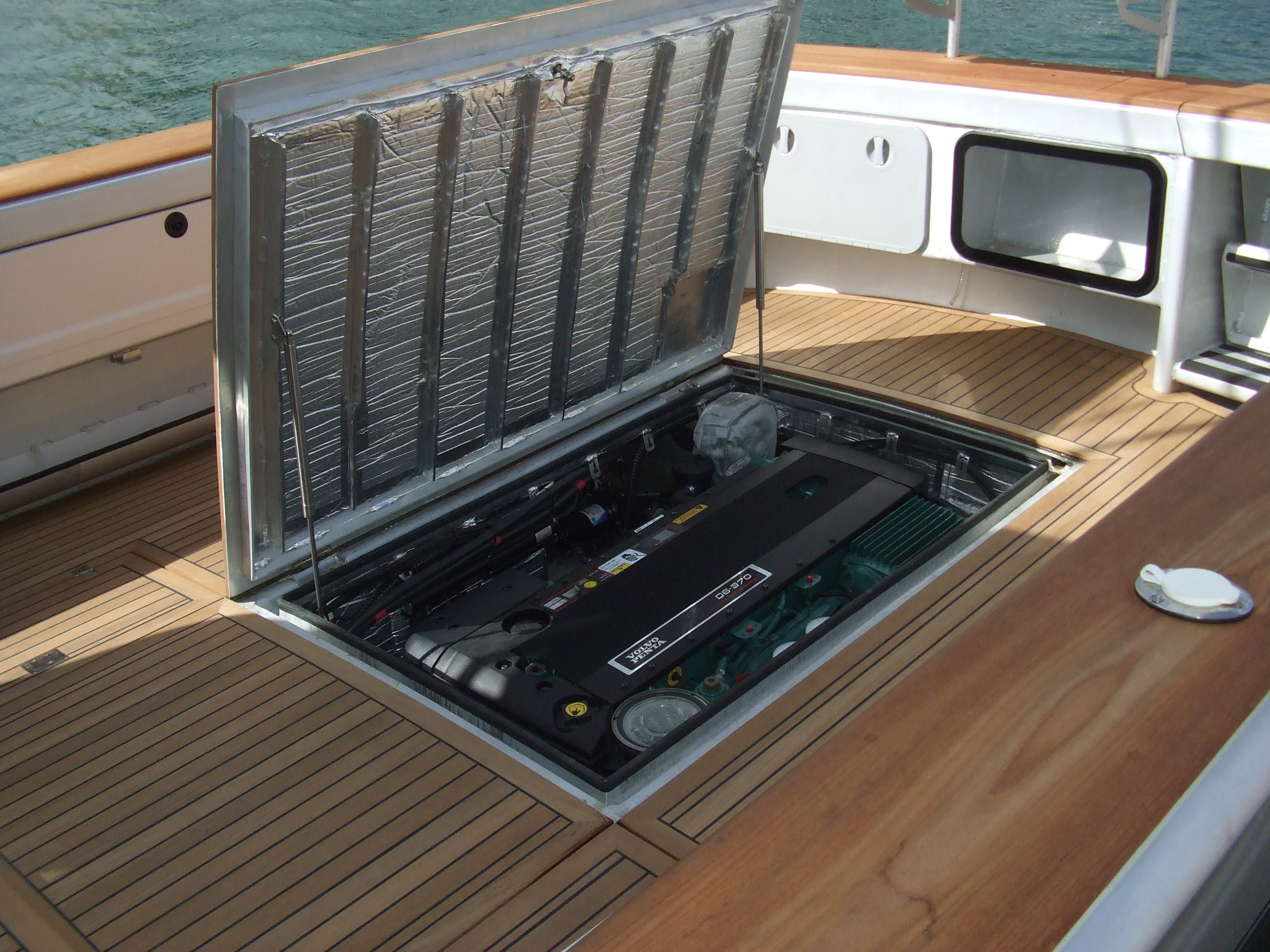

Single inboard sterndrive
Single Sterndrive
Single sterndrive delivers a clean, uncluttered cockpit with simplified maintenance. Available with diesel or petrol powerplants. Ideal for WP30 and WP32 models where a single drive meets the performance requirement.
Clean cockpit profile
Diesel or petrol available
Full trim & tilt
Simplified servicing
Ideal for 30-33ft models
Resolved Configurations
Engineered. Built. Resolved.
Every configuration shown here has been engineered, built, and resolved. These are designs we can build and deliver — not concepts.
Command Your Way
Wheelhouse options.

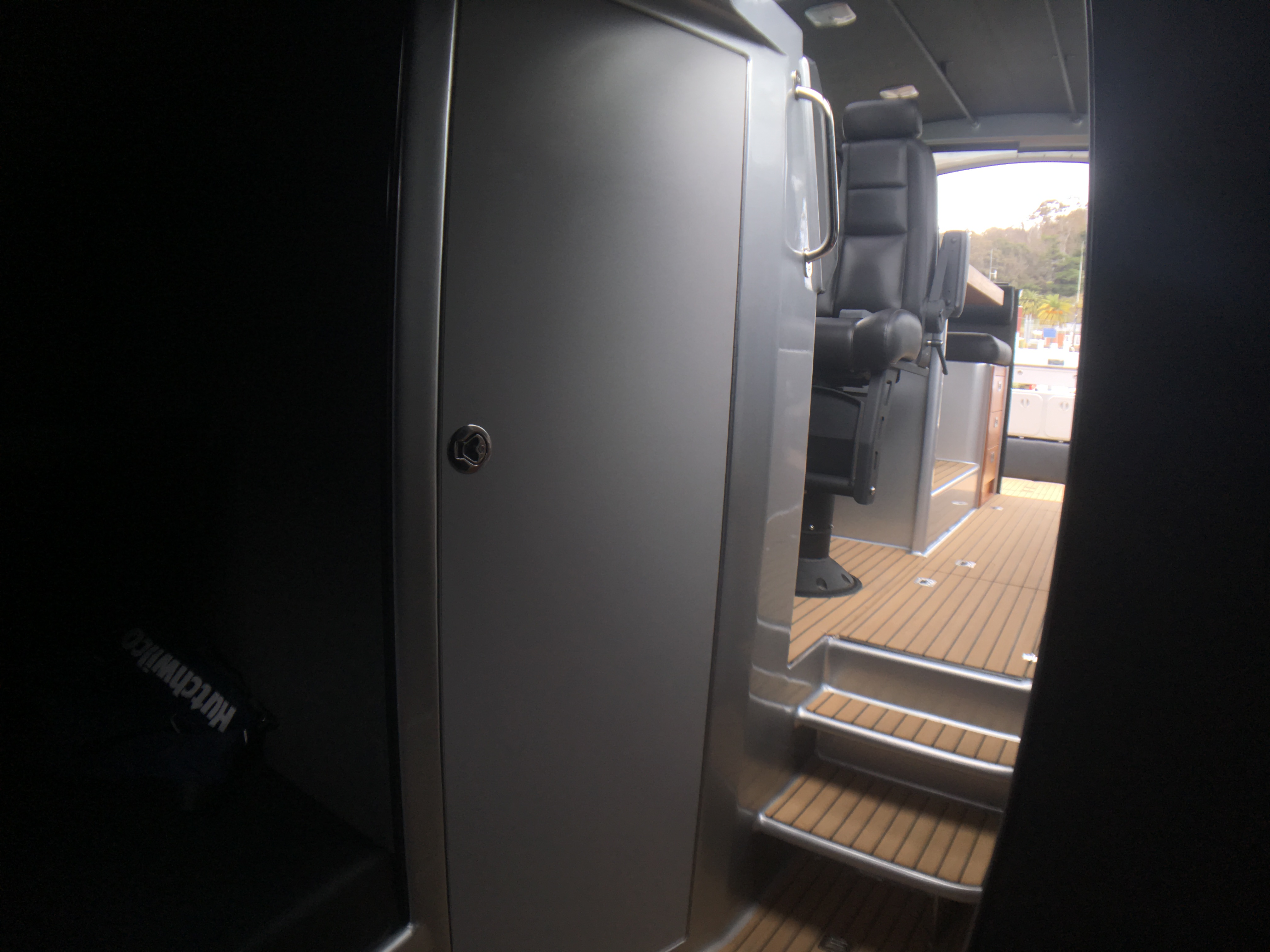

Enclosed Wheelhouse

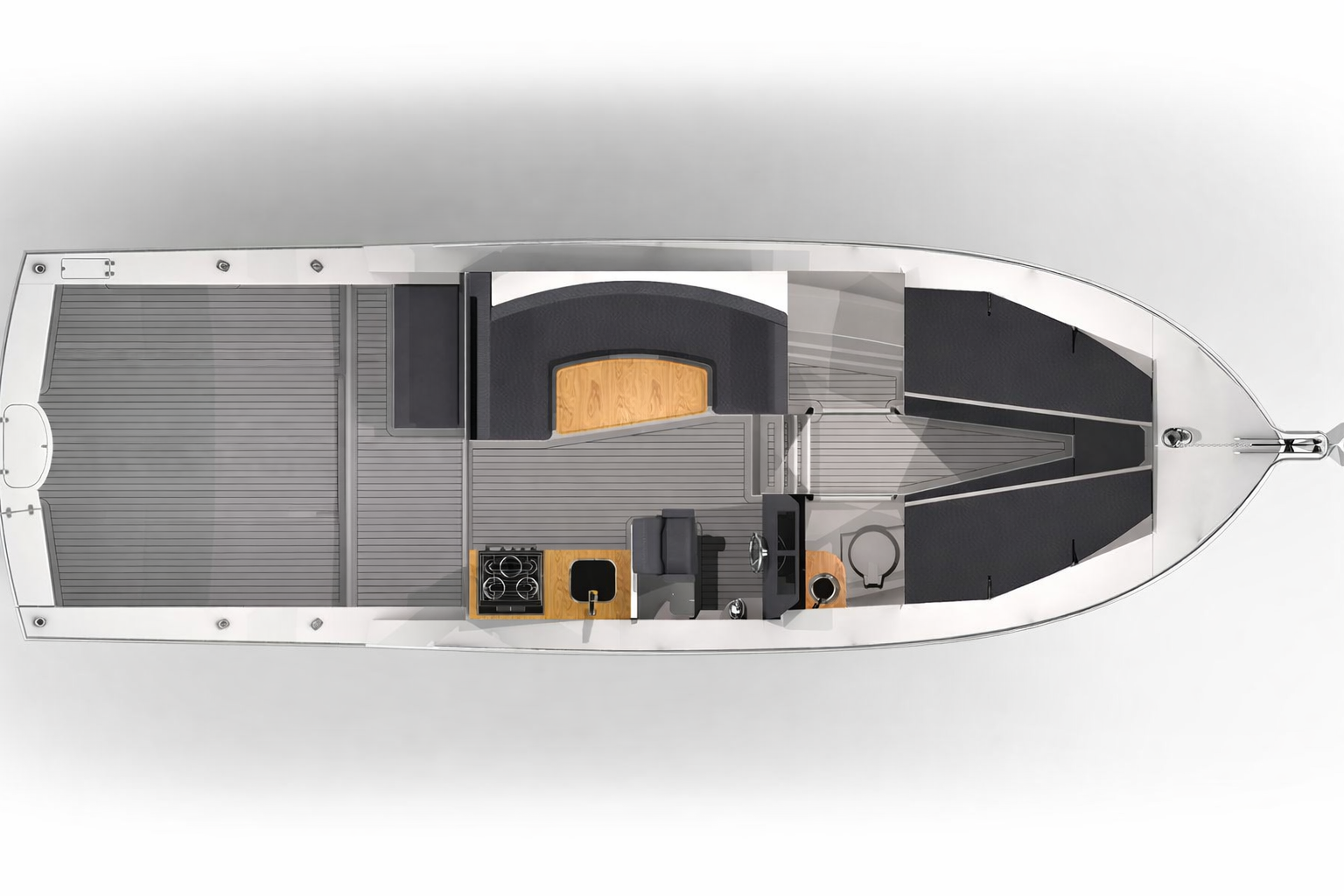

Enclosed WHeelhouse - "U" Shaped seating and Galley in Saloon with Double Berth Forward and Starboard Side Head
Open Cabin
Open cabin images coming soon
Specifications
Technical specifications.
Dimensions
| Overall Length | 10.75m (35ft) |
| Beam | 3.1m |
| Deadrise (at transom) | 18deg |
| Hull Thickness | 8mm |
Construction
| Marine Grade Alloy | 5086 |
Capacity & Rating
| Max Persons | 12 |
| Tow Weight (apporx.) | 7000-9000kgs |
| Fuel Tank Size | 800lts |
| Max Inboard HP | 440hp |
| Max Outboard HP | 1200hp |
Standard Features
Included as standard.
8mm Hull Plate Upgrade
Bait station Large 1m, 5 rod holders, knife and can holders, cutting board
Grab rails at fishtail end on wheel house
Anchor Well - with Lid, Latch and Drains
Comfortable drivers position sitting or standing - Good vision
Bunk Berth, role away type, in cuddy cabin on starboard side above vee berth
Cockpit seat (Freezer) under cavity slider window with hinged lid and upholstered squab, 90mm insulation freezer panel, internal fridge / freezer unit with temp. control
Coatings: Full Paint Job internal and external including full cabin, wheelhouse (incl seating), hard top roof and eyebrow, rear bulkhead, cockpit seat, sink console, transom & hull to chine line in a solid colour (includes blocking, fairing but paint directly over welds. Bow and Transom rails painted in matching colour (unless upgraded to matte black)
Built in sealed buoyancy under deck in wheelhouse and cockpit
Cup Holders x8 mounted in gunwhale, one by each rod holder
Bollard "T" shape at bow
Hatch in cuddy cabin roof water tight
Insulated Ceiling with polystyrene then ply under carpet lining
Compass back wired for lighting on navigation switch
Coatings; Decals Name on side of cabin
Battery House System Victron LiFePO4 Lithium Battery 12.8V/200AH Smart x1, Victron Smart BMS 12/200, Victron Smart Shunt 500A/50MV
Reverse Chined (gull wing) Non Pounding hull design - Fully framed and plated commercially proven concept
Bow Sprit - Rope Guide and Roller
Coatings; Decals Graphic stripping
Lighting: anchor mast Light LED
Lighting: cuddy cabin x 3 LED type red/white (one on back of dash, two on ceiling)
Deck Wash (High Volume), salt water pick up, pump, hose, nozzle and dash switch
Battery Start 1x 1000 CCA with master start switching loom
Custom Seating: Skippers Helmsman Bolsterd fold up arm rest mounted on alloy box base built into the starboard side wall of boat fitted with scissors action gas suspension, slider & swivel & includes hatch access storage in base.
Custom seating; DOUBLE front box seat with reversible back rest set 350mm back from cuddy bulkhead. Rear seat double back box seat under cavity slider window
Fore Deck area flat for a good working platform
Lined cuddy cabin with marine carpet
Fresh water system (cold): Fabricated alloy console with oval St/St sink mounted in top, side access hatch, stainless steel mixing tap, pull out shower and over board waste outlet. Located in cockpit on starboard side of wheel house rear bulkhead. Includes 12v water pump with filter. Polyethylene tank 150lt mounted under floor in wheel house with removable alloy access hatch.
Bilge Pumps x 2, one in each sump on float switches, three way wired On/Off/Auto
Soft riding non pounding hull
Lighting: navigation lights LED
Lighting: Cockpit Deck soft lighting under parcel trays in cockpit
Savwinch SSS2000 (for boats 7.5 - 10m) Drum WInch incl. 130m of 8mm Braid Rope, 14m of 6mm Chain, Anchor
Custom seating; Port Side Rise and Fall Table between seat boxes
Tow Eye
Bollards Large Stainless Steel Pop Up Cleat type mounted on gunwales at transom, one each side
Storage shelves Cuddy cabin - 3 x upper & lower levels (large)
Live Bait tank fish TV in walk through pump feed with access from top hatch
Storage under squabs in front cabin
D/C USB double 12 volt socket mounted in dash one per side and one at table and one at galley (four in total)
Transducer Mounting Plate
Lighting: Deck Spot lighting into cockpit LED x 2
USB / 12 volt socket mounted in cuddy cabin parcel tray by anchor well bulkhead, one each side
Over board hand wash system, one each side
Transom Cage including twin T-Bar Dive Ladders
Dash able to take flush mount electronics
Rubbish tin, fold out built into aft end of sink console with pull out liner (Only with water heating off engine)

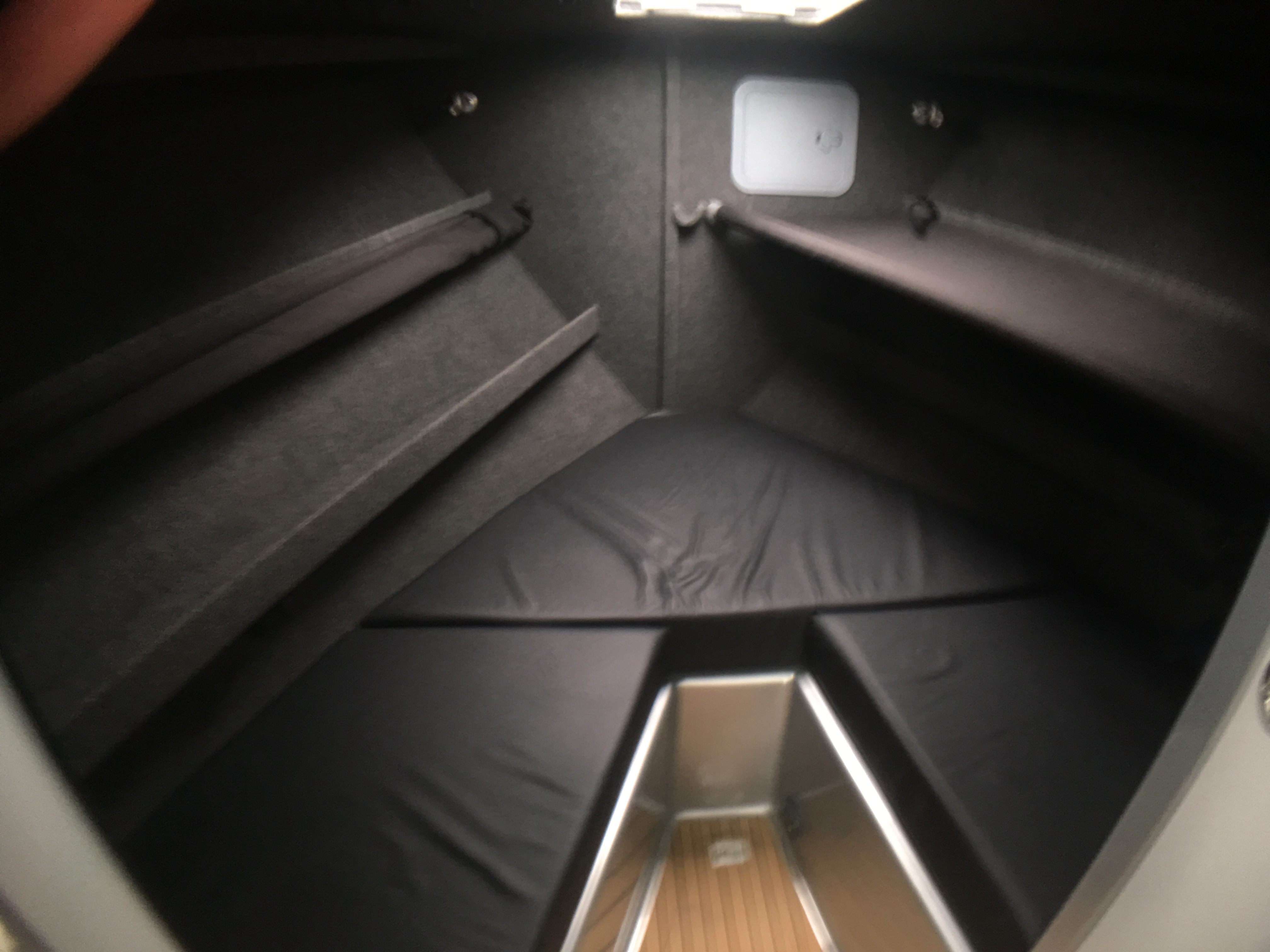

Vee Berth squabs in cuddy cabin
Dash large full width dash top
Trim tabs transom mounting plates Zipwake 450 pro Chine
Storage; Paddle and gaff hook storage - Along sides under shelving
Dash rail and rim - Stops gear falling off dash
Twin Outboard Engine Pod
Dash removable rear cover to protect wiring and steering
Storage; Side storage shelve - Aft in cockpit (Very Large)
Tube matting in parcel trays in cockpit
Full height/length operating station
Galley Cabinet; Custom built with a wooden bench top installed behind helm seat on starboard side of wheel house, with mounting for the Wallas diesel oven with two burner stove and stst sink with hot and cold water, all available space utilised for storage with soft close doors with a positive catch.
Grab rail on port side wall by front seat
Grab rail on the inside of the wheelhouse door
Grab Rails Long Stainless Steel on wheelhouse ceiling
Lighting: Wheelhouse x 5 LED type red/white, one on radio console, one over galley and one over table
Lockable Pillarless Wheel House Bulk Head with Electric cavity slider window on port side with rear bulkhead and a fixed perspex window on the starboard side bulk head, Bifold door opening to starboard.
Side shelf by front seats
Sliding wheel house side window
Upholstery: Lined Wheelhouse upgraded walls and ceiling in vinyl paneling
Upholstery: Lined Wheelhouse/cuddy cabin carpet
Wind screen wiper system port and starboard with intermittent button and fresh water windscreen washer
Windows; 6mm Curved Toughened Glass - One Piece Front - Superior Visibility
Wiring loom Custom with three six switch panels mounted in dash with easy access to fuses
Bespoke Builds
Every vessel begins
with a conversation.
The WP35 is one expression of what White Pointer builds. If you have a brief, a specification, or simply an idea — we want to hear it.
