Length Overall
8.4m
Beam
2.75m
Max Power
600hp
Fuel
500L
Max Persons
10
Deadrise
18°
Gallery
840 SC builds
20 photos — click any image to view full size
Hull Configurations
Resolved layoutsEvery configuration shown here has been engineered, built, and refined. Tap a category to view the available layouts.
Specifications
| Dimensions | |
| Length Overall (LOA) | 8,400 mm |
| Beam (max) | 2,750 mm |
| Depth (internal) | 1,080 mm |
| Deadrise at Transom | 18° |
| Construction | |
| Hull Alloy | 5086 H116 marine grade |
| Bottom Plate Gauge | 6 mm |
| Topsides Gauge | 5 mm |
| Transom Gauge | 6 mm |
| Capacity & Rating | |
| Maximum Persons | 10 |
| Maximum Load | 900 kg |
| Maximum Power Rating | 600 hp (2 × 300 hp) |
| Recommended Power | 350 - 450 hp outboard |
| Shaft Height | 30" Standard |
| Fuel Capacity | 500 L (twin underfloor tanks) |
Standard Features
Included with every 840 SCEvery White Pointer leaves Gisborne with this equipment fitted as standard.
10 Year Hull Warranty
Fully framed and plated design – commercially proven
Marine grade alloy throughout
Fully welded floor
Two large sealed boyancy tanks
Reverse-chined (gull wing) non-pounding hull
Transom Hatches with Battery Storage
Live Bait Tank
Walk-through Transom
Transom Grab Rails & Transom Alloy Cleats
Transducer & Trim Tab Mounting Plates
Full-width extended BAT wing boarding platform
25" shaft outboard pod
Deck sump & free-draining scuppers
Bilge Pump with Float Switch
750mm removable bait station
Two-step flat-folding Boarding Ladder
Underfloor Storage Tank with Liner
500L Fuel Tank
Deck Wash Pick UP only
Boat DEK Gunwale Foam
Midship Alloy Cleats
Paddle & gaff hook storage
Large aft side storage shelves
King/Extra Long Queen Lounge seating + storage x 2
Bolster Seats + Inverted Softriders x2
Helm Footrest Storage Locker
Stainless Steel Roof Grab Handle
Stainless Rod Holders x6
4mm Treadplate Floor
Bow T Bar Bollard
Bowrail Lightbar Mount
Large anchor well with drains
Alloy Bow Rail & Flat Foredeck Work Area
Drum Winch Set Up (winch not included)
Standard Upholstery - Carpeted Cabin & Hard Top
Open cuddy cabin (only helm bulkhead)
Dual-level shelves and under-squab storage
Dash rail, grab rails
V-Berth squabs and shark fin cabin windows
Large Dash with cover to protect wiring
Flush-mount capable full-width dash
Lined Cabin with Squabs
Toughened 6mm curved one-piece glass Windscreen
Frameless Sliding Side Windows
Watertight hatch in cuddy cabin roof
Rocket Launcher with 7x Rod Holders
Navigation Lighting
Complete Wiring Loom with dual 6-Way switch panels
Optional Extras
Factory-fitted optionsAll options below are fitted at the factory during the build.
Electronics
VHF radio — fixed mount
Autopilot system
Radar arch & mount
EPIRB bracket & housing
Furuno, Garmin, Lowrance, Simrad & Raymarine full suite
Comfort & Shelter
Diesel Heater
Lock up Cabin or Wheelhouse
Full canvas enclosure
Hard Top shade extension
Cabin Infill Squab
Shower (hot / cold)
Trailer
Trailer Cat Walk Board
Stainless Brake Upgrade
Electric brakes
Spare wheel & carrier

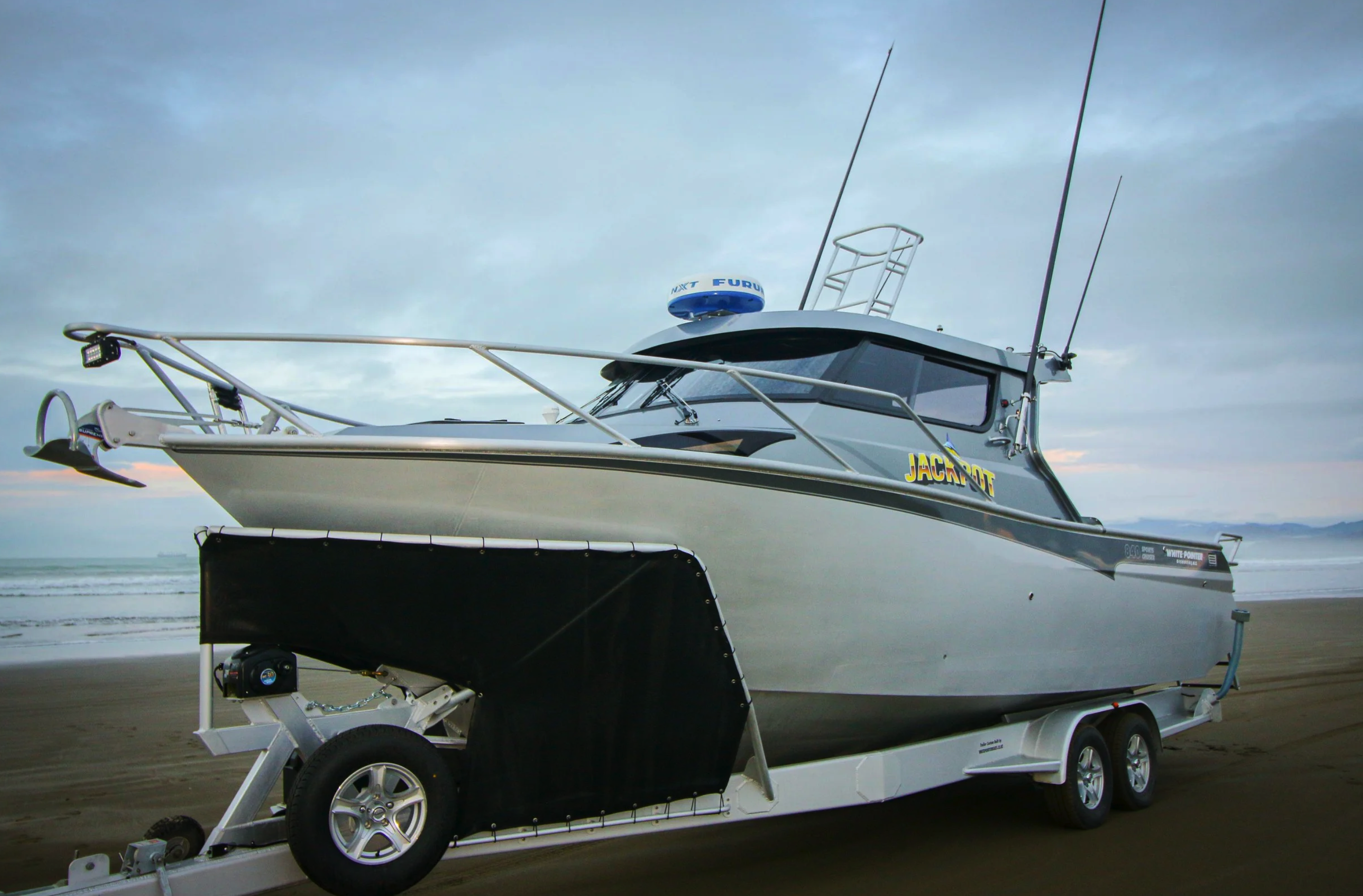

Stone Guard
Alloy Rims
Fishing
Dive Bottle Racks
Aerated live bait tank
Outrigger mounts & poles
360 Deg Rod Holders
Double Row rocket launcher
Tuna Tubes
Deck & Hull
Painted Hull & Cabin

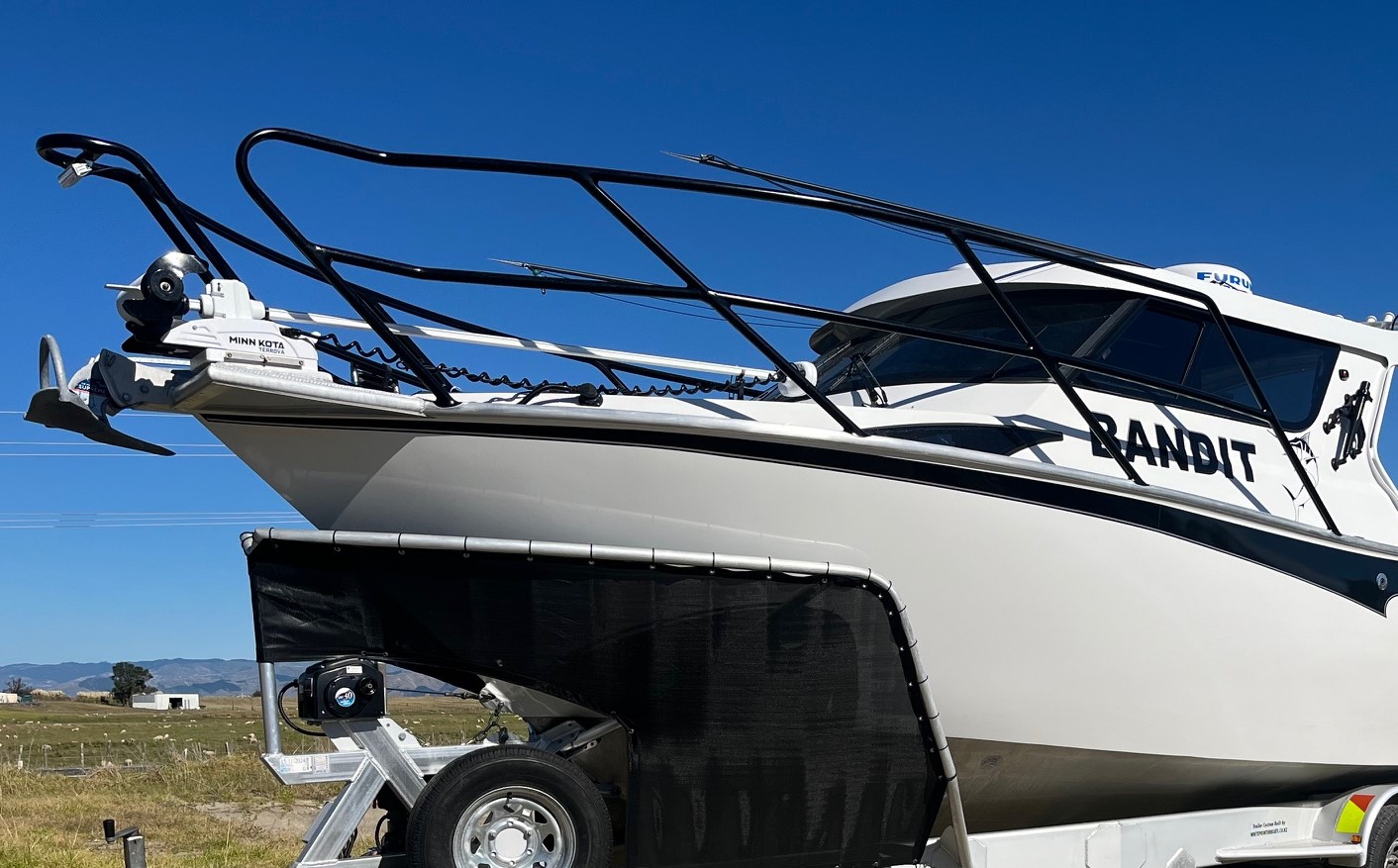

Double Height bow rails
Transom Cage with Ladders
Trim Tabs
Custom SeaDek colour/pattern
Galley & Cabin
Wallas diesel cooktop
12V Refrigeration
Pressurised water system
Marine head
Teak or Composite cabinetry
View or Buy
New Zealand — North
Auckland Marine Centre
321 Ti Rakau Drive, Burswood, Auckland 2013
+64 9 271 1575
Visit Auckland Australia — Victoria
Geelong Boating Centre
88 Barwon Heads Rd, Belmont VIC 3216
+61 3 5241 6966
Visit Geelong 840 SC Specification Sheet
Download a print-ready PDF of this model's full specs, standard features, and options.
