Length Overall
7.05m
Beam
2.45m
Max Power
250hp
Fuel
250L
Max Persons
8
Deadrise
18°

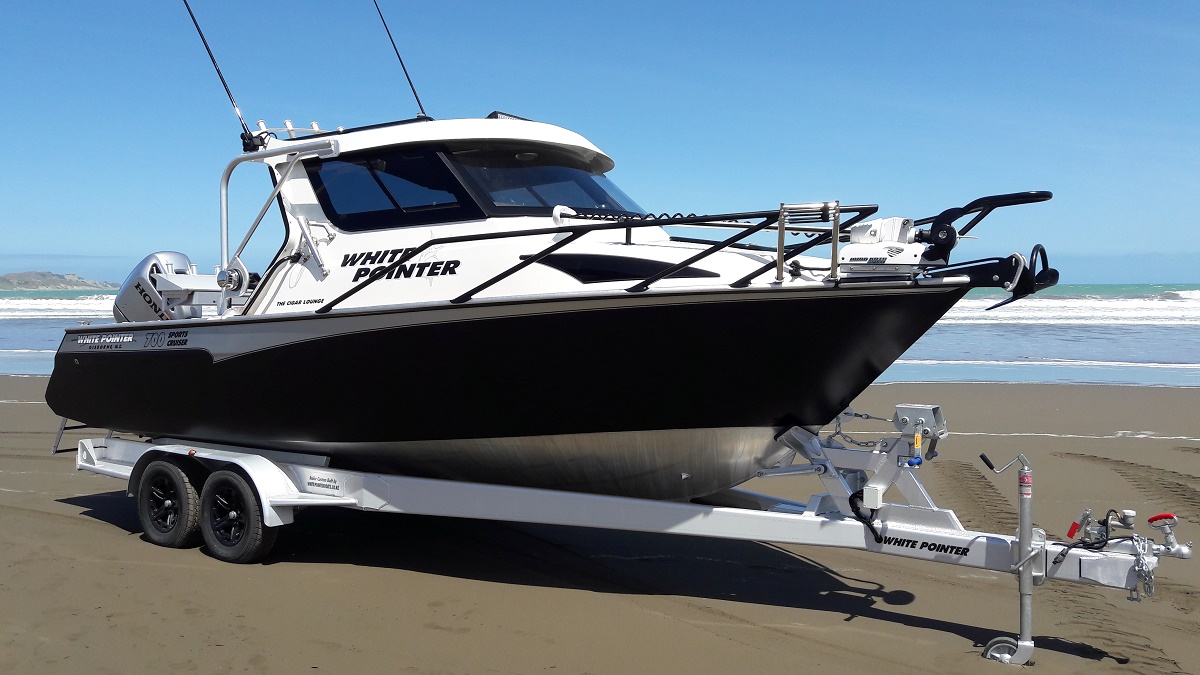

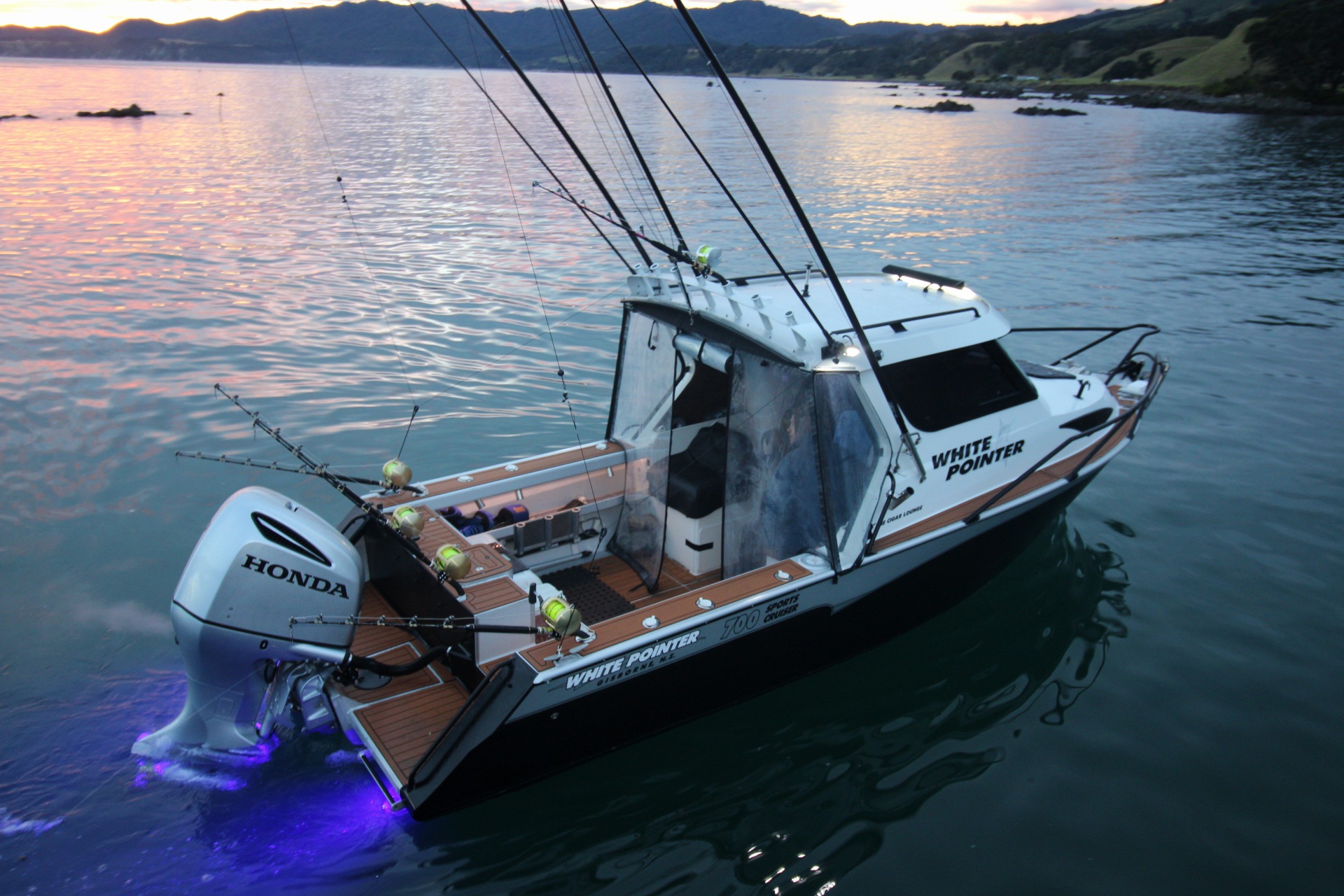

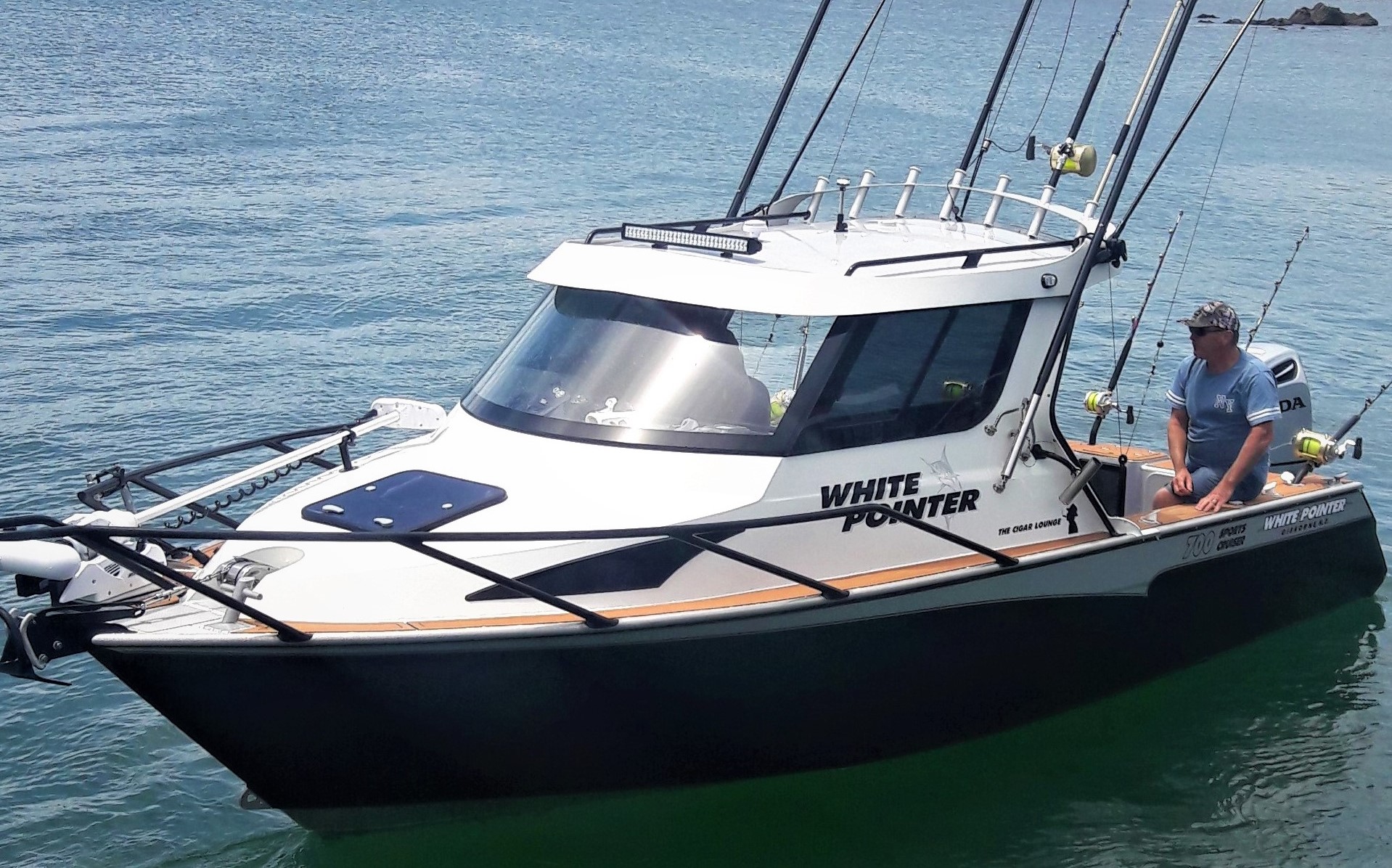

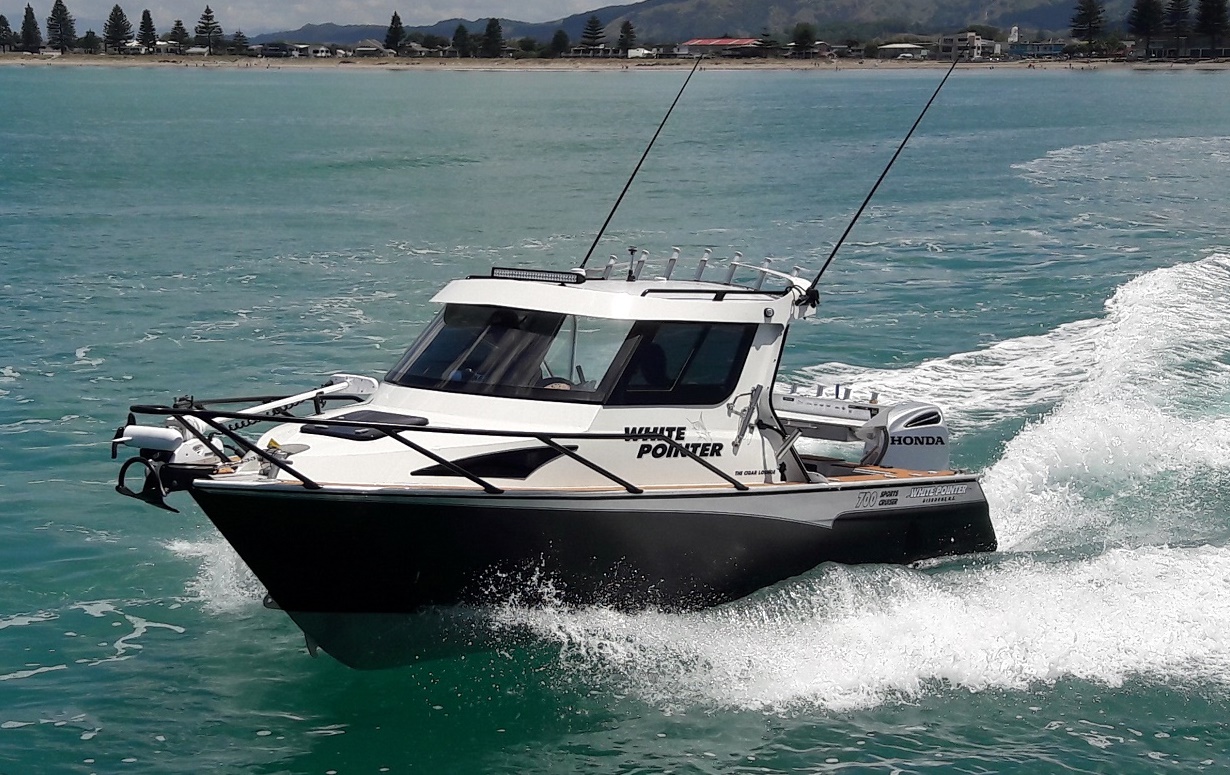

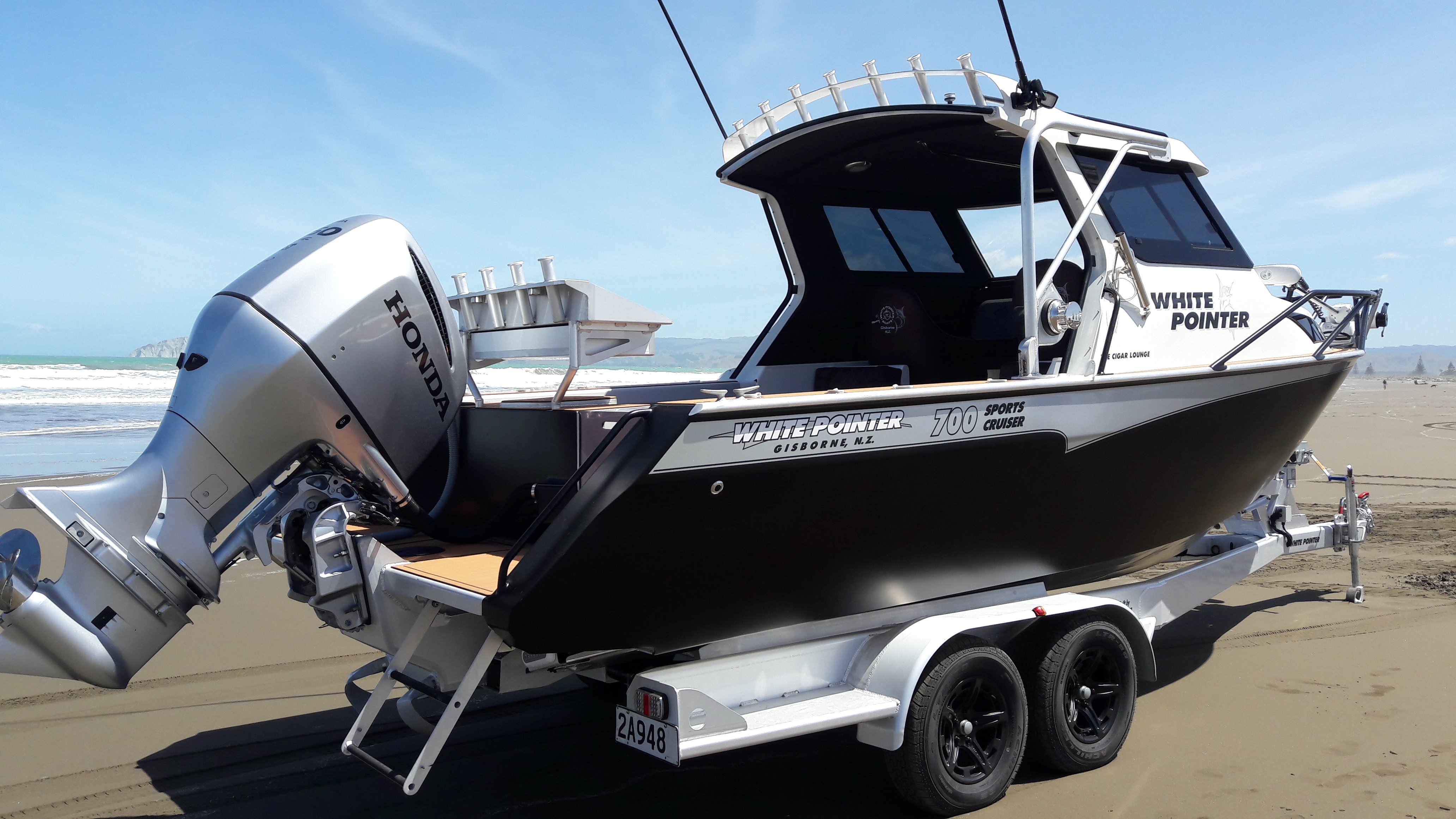

Gallery
705 SC builds
9 photos — click any image to view full size
Hull Configurations
Resolved layoutsEvery configuration shown here has been engineered, built, and refined. Tap a category to view the available layouts.
Specifications
| Dimensions | |
| Length Overall (LOA) | 7,050 mm |
| Beam (max) | 2,300 mm |
| Depth (internal) | 1,000 mm |
| Deadrise at Transom | 18° |
| Construction | |
| Hull Alloy | 5086 H116 marine grade |
| Bottom Plate Gauge | 6 mm |
| Topsides Gauge | 5 mm |
| Transom Gauge | 6 mm |
| Capacity & Rating | |
| Maximum Persons | 8 |
| Maximum Load | 700 kg |
| Maximum Power Rating | 250 hp |
| Recommended Power | 200–250 hp outboard |
| Shaft Height | 25" Standard |
| Fuel Capacity | 250 L (single underfloor tank) |
Standard Features
Included with every 705 SCEvery White Pointer leaves Gisborne with this equipment fitted as standard.
10 Year Hull Warranty
Fully framed and plated design – commercially proven
Marine grade alloy throughout
Fully welded floor
Two large sealed boyancy tanks
Reinforced Keel
Transom Hatches with Battery Storage
Live Bait Tank
Walk-through Transom
Transom Grab Rails & Transom Alloy Cleats
Transducer & Trim Tab Mounting Plates
Full-width extended BAT wing boarding platform
25" shaft outboard pod
Deck sump & free-draining scuppers
Bilge Pump with Float Switch
750mm removable bait station
Two-step flat-folding Boarding Ladder
Underfloor Storage Tank with Liner
250L Fuel Tank
Deck Wash Pick UP only
Boat DEK Gunwale Foam
Midship Alloy Cleats
Paddle & gaff hook storage
Large aft side storage shelves
Soft Rider Pedestal Seat Bases x2
Bolster Bucket Seats with Swivels x2
Helm Footrest Storage Locker
Stainless Steel Roof Grab Handle
Stainless Rod Holders x6
4mm Treadplate Floor
Bow T Bar Bollard
Bowrail Lightbar Mount
Large anchor well with drains
Alloy Bow Rail & Flat Foredeck Work Area
Drum Winch Set Up (winch not included)
Standard Upholstery - Carpeted Cabin & Hard Top
Open cuddy cabin (only helm bulkhead)
Dual-level shelves and under-squab storage
Dash rail, grab rails
V-Berth squabs and shark fin cabin windows
Large Dash with cover to protect wiring
Flush-mount capable full-width dash

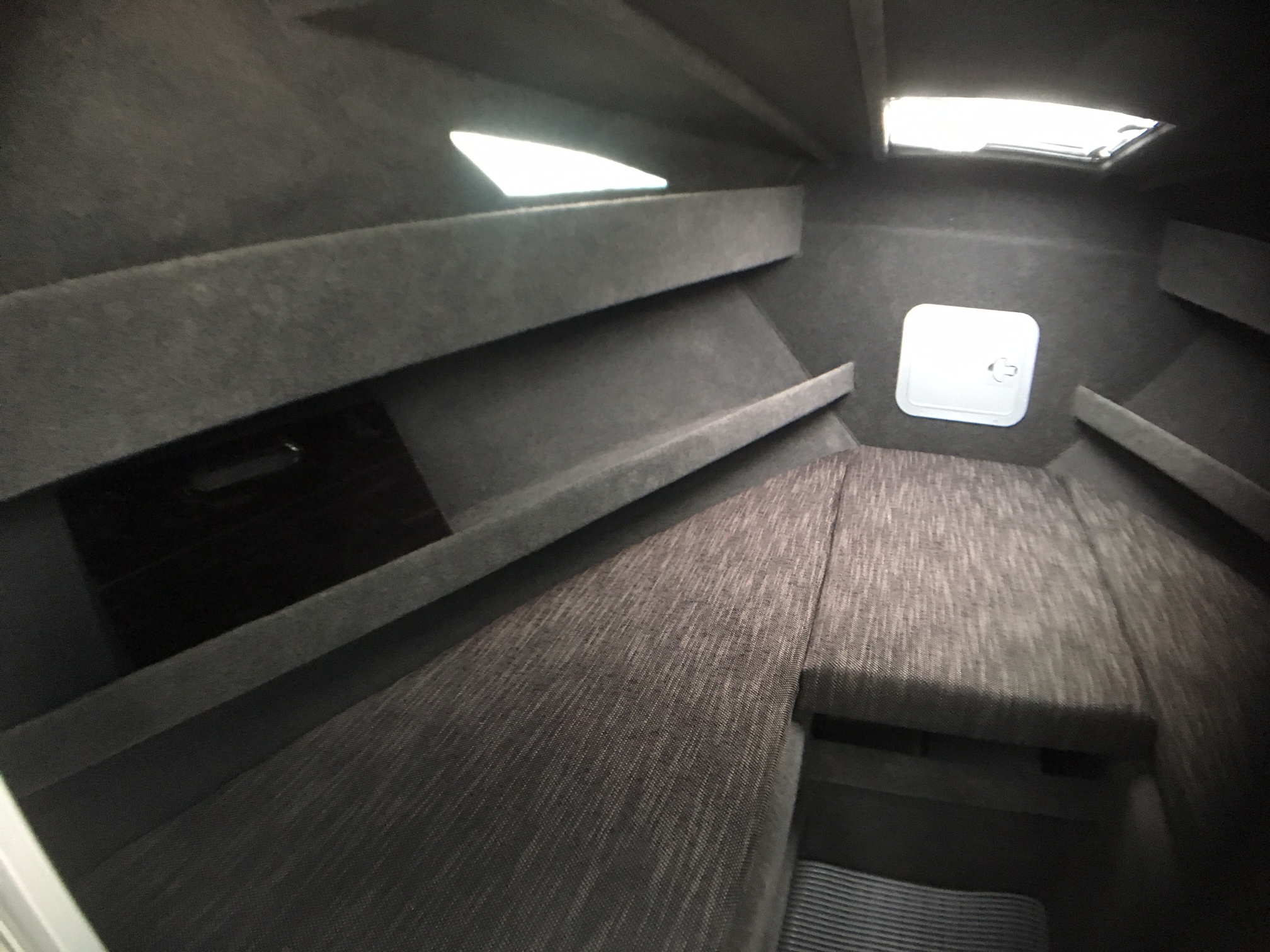

Lined Cabin with Squabs
Toughened 6mm curved one-piece glass Windscreen
Frameless Sliding Side Windows
Watertight hatch in cuddy cabin roof
Rocket Launcher with 7x Rod Holders
Navigation Lighting
Complete Wiring Loom with dual 6-Way switch panels
Optional Extras
Factory-fitted optionsAll options below are fitted at the factory during the build.
Electronics
VHF radio — fixed mount
Autopilot system
Radar arch & mount
EPIRB bracket & housing
Furuno, Garmin, Lowrance, Simrad & Raymarine full suite
Comfort & Shelter
Diesel Heater
Lock up Cabin or Wheelhouse
Full canvas enclosure
Hard Top shade extension
Cabin Infill Squab
Shower (hot / cold)
Trailer
Trailer Cat Walk Board
Stainless Brake Upgrade
Electric brakes
Spare wheel & carrier
Stone Guard
Alloy Rims
Fishing
Dive Bottle Racks
Aerated live bait tank
Outrigger mounts & poles
360 Deg Rod Holders
Double Row rocket launcher
Tuna Tubes
Deck & Hull
Painted Hull & Cabin
Double Height bow rails
Transom Cage with Ladders
Trim Tabs
Custom SeaDek colour/pattern
Galley & Cabin
Wallas diesel cooktop
12V Refrigeration
Pressurised water system
Marine head
Teak or Composite cabinetry
